Z45W-16 Brass Flange Gate Valve
Product overview
Product model: Z45W-16
Nominal diameter: DN125~200mm
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid, saturated steam (≤ 0.6Mpa)
Operating temperature: -20℃≤ T ≤150℃

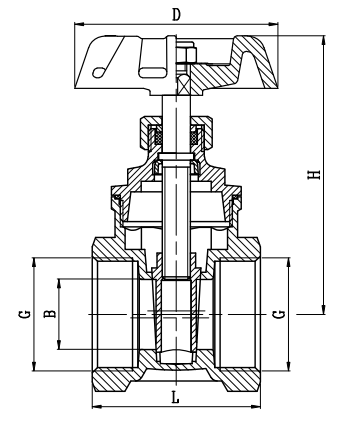

Z45W-16 Brass Flange Gate Valve main dimensions
| DN | 125 | 150 | 200 |
| A | 180 | 203 | 250 |
| B | 125 | 150 | 200 |
| C | 382 | 433.5 | 553.5 |
| D | 237 | 237 | 320 |
| D1 | 250 | 285 | 340 |
| ￠D | 18 | 22 | 22 |
| n | 8 | 8 | 8 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Z45W-16 Brass Flange Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
