J11W-16T Screw Globe Valve

Product overview

Product model: J11W-16T
Nominal diameter: DN8~100mm
Nominal pressure: 1.6MPa
Working medium: water, gas, oil
Operating temperature: -20℃≤ T ≤100℃
Pipe thread conforms to ISO228 standard

J11W-16T Screw Globe Valve product details

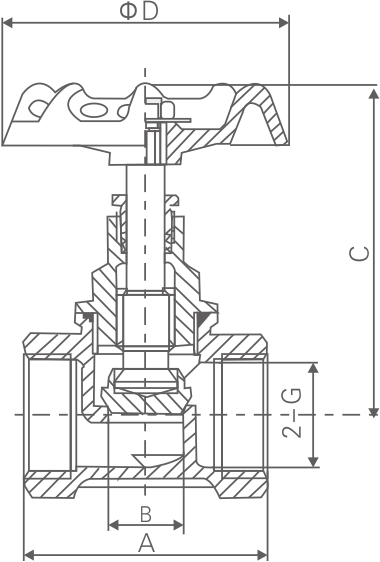

J11W-16T Screw Globe Valve main shape and connection dimensions:


DN

SIZE

L

B

H

D

8

1/4

40

10.5

61

45

10

3/8

40

10.5

61

45

15

1/2

46

17

72.5

60

20

3/4

54

17

72.5

60

25

1

67

22

86

72

32

11/4

77

27

97

80

40

11/2

83

34

116.5

100

50

2

104

43

132.5

110

65

21/2

170.5

65

197

178

80

3

245

80

277

200

100

4

270.5

100

316

240



Reminder:

All text, data and pictures in this article are for reference only.To see more details of the J11W-16T Screw Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
