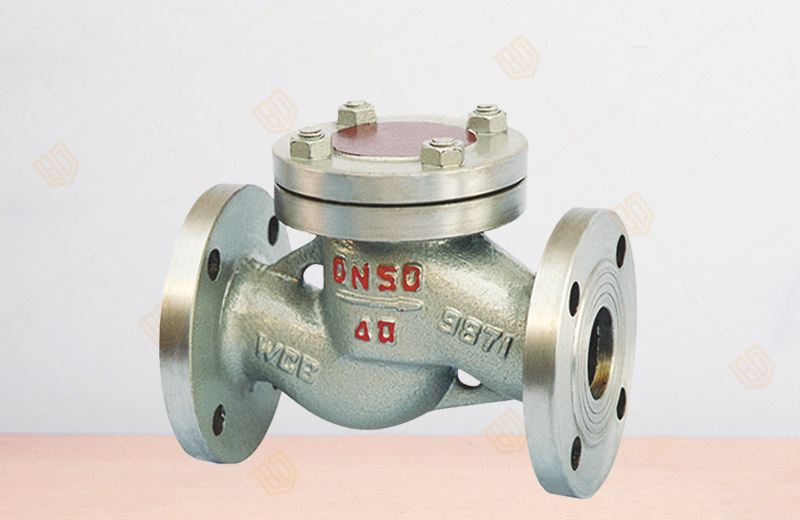

H41N-25/40 LPG Check Valve
Product overview
Product model: H41N-25/40
Nominal Diameter: DN25∽200 (mm)
Nominal pressure: PN2.5~4.0MPa
Main material: carbon steel, stainless steel, chromium stainless steel
H41N-25/40 LPG Check Valve product size
H41N-25/40 LPG check valve produced and sold by Baigang Valve Group is widely used in liquefied gas industry.
| PN | DN | L | H | D | D1 | D2 | b | f | Z-φd |
|
2.5MPa 4.0MPa |
25 | 160 | 115 | 115 | 85 | 65 | 16 | 2 | 4-14 |
| 32 | 190 | 120 | 135 | 100 | 78 | 18 | 3 | 4-18 | |
| 40 | 200 | 140 | 145 | 110 | 85 | 18 | 3 | 4-18 | |
| 50 | 230 | 150 | 160 | 125 | 100 | 20 | 3 | 4-18 | |
| 80 | 310 | 175 | 195 | 160 | 135 | 22 | 3 | 8-18 | |
| 100 | 350 | 200 | 230 | 190 | 160 | 24 | 3 | 8-23 | |
| 150 | 480 | 265 | 300 | 250 | 218 | 30 | 3 | 8-25 | |
| 200 | 600 | 300 | 360 | 310 | 278 | 34 | 4 | 12-25 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the H41N-25/40 LPG Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
