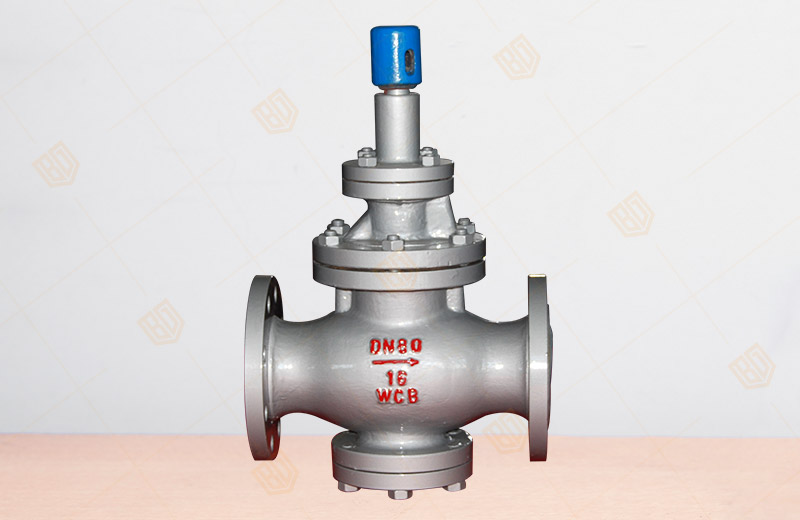

YD43H Water Membrane Valve
Product overview
Product model: YD43H
Nominal diameter: DN15~500mm
Nominal pressure: PN1.6~16MPa
Main material: WCB, 2Cr13, 2Cr13/25(hard chrome plating), 2Cr13/ copper alloy
Applicable temperature: 0~80℃
Drive mode: manual
Flange standard: GB/T17241.6, GB/T9113
Test standard: GB/T13927, API598
YD43H Water Membrane Valve product description
YD43H Water Membrane Valve produced and sold by Baigang valve group is mainly used for steam pipe, from the role of decompression regulator. Pilot-dependent valve. The main valve and pilot valve composed of two parts. The main valve from the valve seat, the main valve disk, piston, spring and other components. Pilot valve mainly by the valve seat, disc, diaphragm, spring, adjusting spring and other components. This product has been greatly improved on the basis of ordinary pressure reducing valve, increasing the piston area and changing the throttling structure. Change the seal form, increase the over-current area, etc., which greatly improve the performance in terms of improving sensitivity, flow, life and so on. This product is mainly used for steam pipe, suitable for large flow rate changes, large changes in the inlet pressure of the steam pipeline.
YD43H Water Membrane Valve main technical parameters and performance indicators
|
Nominal pressure (Mpa) |
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
|
Shell test pressure (Mpa) |
2.4 |
3.75 |
6.0 |
9.6 |
15.0 |
twenty four |
|
Seal test pressure (Mpa) |
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
|
The maximum inlet pressure (Mpa) |
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
|
Outlet pressure range (Mpa) |
0.1-1.0 |
0.1-1.6 |
0.1-2.5 |
0.5-3.5 |
0.5-3.5 |
0.5-4.5 |
|
Pressure characteristic deviation (Mpa) △ P2P |
GB12246-1989 |
|||||
|
Flow characteristics deviation (Mpa) P2G |
GB12246-1989 |
|||||
|
Minimum pressure difference (Mpa) |
0.15 |
0.15 |
0.2 |
0.4 |
0.8 |
1.0 |
|
Leakage |
GB12245-1989 |
|||||
Shell test does not include diaphragm, top cover.
YD43H Water Membrane Valve main dimensions
| DN | L | H1 | H | D |
| 15 | 147 | 235 | 145 | 207 |
| 20 | 154 | 235 | 145 | 207 |
| 25 | 160 | 235 | 145 | 207 |
| 32 | 180 | 250 | 160 | 220 |
| 40 | 16 | 250 | 160 | 220 |
| 50 | 230 | 270 | 180 | 220 |
