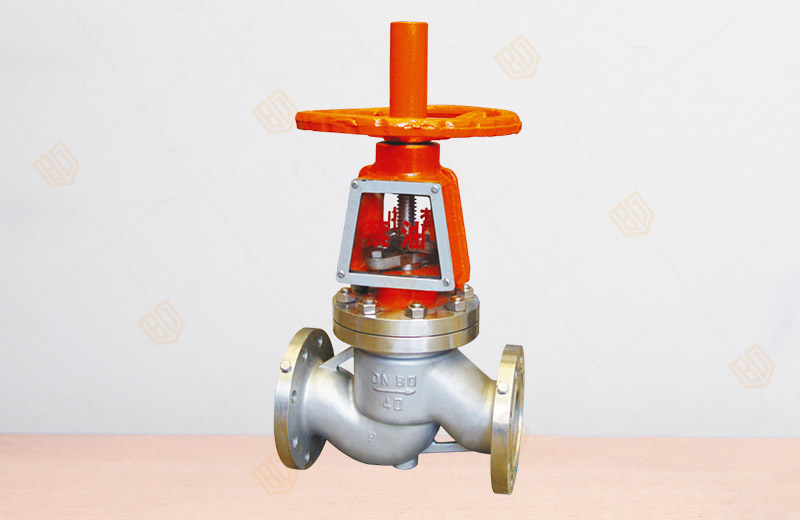

YJ41W Special Oxygen Globe Valve

Product overview

Product model: YJ41W
Nominal diameter: DN15~400mm
Nominal pressure: PN1.6~4.0MPa
Applicable temperature: normal temperature
Applicable medium: oxygen
Design and manufacture: GB12235-89
Structure length: GB12221-89
Flange size: B/G79-94
Inspection and test: GB13927

YJ41W Special Oxygen Globe Valve product details

YJ41W Special Oxygen Globe Valve produced and sold by Baigang valve group is a forced-sealed valve, so the valve is closed, you must apply pressure to the valve to force the sealing surface does not leak. When the medium from the bottom of the valve into the valve six, the operating force needed to overcome the resistance is the stem and packing friction and the pressure generated by the media thrust, off the valve force than the valve opening force, so the valve The diameter of the rod should be large, otherwise it will happen to the top of the valve stem failure. In recent years, from the self-sealing valve appears, the flange of the media cut off the valve to change from the top of the valve into the valve chamber, then under medium pressure, the valve closing force is small, and open the valve force, valve The diameter of the rod can be reduced accordingly. At the same time, in the medium, this form of valve is also more stringent.

1, the oxygen valve is open, the valve opening height, 25% to 30% of the nominal diameter, the flow has reached its maximum, indicating that the valve has reached the fully open position. Therefore, the full-stop position of the valve, valve stroke should be determined.

2, small work schedule, opening and closing time is short.
3, good sealing, friction between the sealing surface is small, longer life expectancy.

YJ41W Special Oxygen Globe Valve main performance and use :

model	Nominal pressure	Shell test pressure Ps (Mpa)		Gas seal test	Applicable temperature (℃)	Suitable media
		water	gas
YJ41W-25P YJ41W-40P	2.5	3.8	2.5	2.5	Room temperature	oxygen

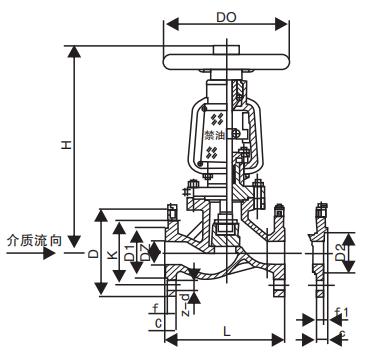

YJ41W Special Oxygen Globe Valve main dimensions:

YJ41W-40P, YJ41W-40R														Weight (kg)
DN (mm)	Size (mm)
DN (mm)	L	D	D1	D2	D6	b	f	fz	z-фd	Dz	i	H	D0
15	130	95	65	45	40	16	2	4	4-ф14	82	10	202	100	5
20	150	105	75	55	51	16	2	4	4-ф14	95	13	225	100	6.5
25	160	115	85	65	58	16	2	4	4-ф14	98	15	236	125	7
32	190	135	100	78	66	18	2	4	4-ф18	120	28	312	180	13.5
40	200	145	110	85	76	18	3	4	4-ф18	135	20	328	160	16
50	230	160	125	100	88	20	3	4	4-ф18	160	25	450	320	32
65	290	180	145	120	110	22	3	4	8-ф18	180	30	530	360	45
80	310	195	160	135	121	22	3	4	8-ф18	195	32	560	400	60
100	350	230	190	160	150	24	3	4.5	8-ф23	230	40	618	450	80
125	400	270	220	188	176	28	3	4.5	8-ф25	275	42	675	450	105
150	480	300	250	218	204	30	3	4.5	8-ф25	330	50	743	560	134
200	600	375	320	282	260	38	3	4.5	12-ф30	405	55	850	640	266

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the YJ41W Special Oxygen Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
